Stainless Steel Welded Mesh
The welding mesh is processed by automatic and complex welding technology. The stainless steel welding mesh combines rust prevention and wear resistance with durability. The toughness of the stainless steel mesh is due to the electric positive welding and the protection of chromium, resistance welding at each intersection connects each intersection to increase rigidity. Chromium hardens stainless steel and increases corrosion resistance, and welded stainless steel mesh is less likely to wear out, even when cut into smaller squares, rectangles or disks. As a stainless steel welded mesh manufacturer. Anping Guangtong Hardware Wire Mesh Co., Ltd. specializes in providing high-quality stainless steel welded mesh. Strong and consistent welds make stainless steel welding mesh an ideal choice for general industrial use, suitable for construction, agriculture, commercial and industrial applications. If you are interested in further discussing the technical details of stainless steel welding mesh or cooperation opportunities, please feel free to contact us.
Stainless Steel Welded Mesh Specifications
Specification List of Welded WireMesh Opening Wire Diameter<BWG> In inch In metric unit(mm) 1/4"×1/4" 6.4mm×6.4mm 22,23,24 3/8"×3/8" 10.6mm×10.6mm 19,20,21,22 1/2"×1/2" 12.7mm×12.7mm 16,17,18,19,20,21,22,23 5/8"×5/8" 16mm×16mm 18,19,20,21, 3/4"×3/4" 19.1mm×19,1mm 16.171819202 1"×1/2" 25.4mm×12.7mm 16,1718,19,20,21 1-1/2"×1-1/2" 38mm×38mm 14,15,16,17,18,19 1"×2" 25.4mm×50.8mm 14,15,16 2"×2" 50.8mm×50.8mm 12,13,14,15,16 Technical Note:
1.Standard roll length: 30m; width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.Galvanized Fencing Mesh Opening Wire Diameter<BWG> In inch In metric unit(mm) 2"×3" 50mm×75mm 2.0mm,2.5mm,1.65mm 3"×3" 75mm×756mm 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm 2"×4" 50mm×100mm 2.11mm,2.5mm 4"×4" 100mm×100mm 2.0mm,2.5mm Technical Note:
1.Standard roll length: 30m; width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.PVC Coated Welded Mesh Opening Wire Diameter<BWG> In inch In metric unit(mm) 1/2"x1/2" 12.7mmx12.7mm 16,17,18,19,20,21 3/4"x3/4 19mm x19mm 16,17,18,19,20,21 1"xi" 25.4mmx25.4mm 15,16,17,18,19,20 Technical Note: 1.Standard roll length: 30m; width: 0.5m to 1.2m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.Stainless Steel Welded Mesh Features and Advantages
Corrosion resistance and oxidation resistance: our factory’s stainless steel has strong anti-corrosion and antioxidant properties to ensure that it is not easy to rust in various harsh environments;
Good air permeability: the stainless steel welded mesh produced and processed by our factory is specially treated, the mesh surface is flat, the finish is high, the mesh is uniform, and the air permeability is good;
Strong structure: the material strength is high, with strong tolerance, and then through precision welding technology, the solder joint is firm, to ensure that long-term use is not easy to fall off;
High temperature resistance: stainless steel is a high-quality high temperature bearing raw material, with strong high temperature resistance, in a variety of high temperature environments will not be deformed.
Welded Mesh Available Material
Stainless steel wire: 304, 304L, 316, 316L, 310, 310S, 314, 321, etc.
Low carbon steel wire mesh: C1008.
Galvanized iron wire: hot-dip galvanized electric welding mesh has good corrosion resistance and excellent quality that ordinary wire mesh does not have.
Other wire: such as nickel, epoxy spraying, etc.
Different metal materials can be customized according to customer needs.
Stainless Steel Welded Mesh alloy
T-304: standard stainless steel alloy, relatively common properties, cheap, for most uses is feasible;
T-316: high-quality stainless steel alloy, often used in Marine environments due to its high corrosion resistance to salt, acid and seawater.
These two alloys are available in fine, medium and thick opening sizes, welcome to consult and customize.
Stainless Steel Welded Mesh Production Capacity
Anping Guangtong Hardware Wire Mesh Co., Ltd. is a professional design, research and development, production, custom welded mesh manufacturer, with more than 20 years of welding mesh production and processing experience, plant covers an area of 40,000 square meters, annual output value of $21 million, annual capacity of 36 million square meters, has reached a strategic partnership with more than 60 countries in the world, we welcome consultation and consultation sample requirements.
(If we don't have what you need, or if you need a reliable long-term source throughout your supply chain, we can customize it to your weld mesh specifications.)
Stainless Steel Welded Mesh Industry Certificate
The company has obtained and fully implemented ISO9001 Quality Management System Certification, ISO45001 Occupational Health And Safety Management System Certification, ISO14001 Environmental Management System Certification, IATF16949 Automotive Industry Quality Management System Certification, AEO customs certification and other related certifications.
Stainless Steel Welded Mesh Packaging
Welded Wire Mesh Panel: Plastic film & Pallet
Welded Wire Mesh Coil: Plastic film & Plywood case & Pallet
Stainless Steel Welded Mesh Applications
Civil use: as a safety isolation fence for public places such as sidewalks and transportation centers;
Agriculture and forestry: goat pens, horse pens and farm and livestock pens;
Industrial and general use: for machine protection, equipment cages, cable and pipe supports, fan and ventilator covers, etc.
Metallurgy
Forestry
Infrastructure
Construction Industry
Chemical Industry
Agriculture
FAQ
How to determine the amount of welding mesh required for the project?
✔ In order to determine the quantity of welding mesh required for your project, you should provide us with detailed plans and specifications and ask for a quotation. We can use this information to calculate precise quantities and help you order the appropriate amount of materials.
What are your business hours?
✔ We can provide services 24 hours a day. Please feel free to send us your requirements and we will contact you as soon as we can.
What manufacturing processes do you provide for your welding mesh?
✔ We can provide electro galvanizing, hot-dip galvanizing, PVC coating, plastic coating, and stainless steel polishing.
What information do you need for quotation of welded mesh?
✔ The specification;
✔ Product materials;
✔ The quantity.
What is the difference between woven mesh and welding mesh?

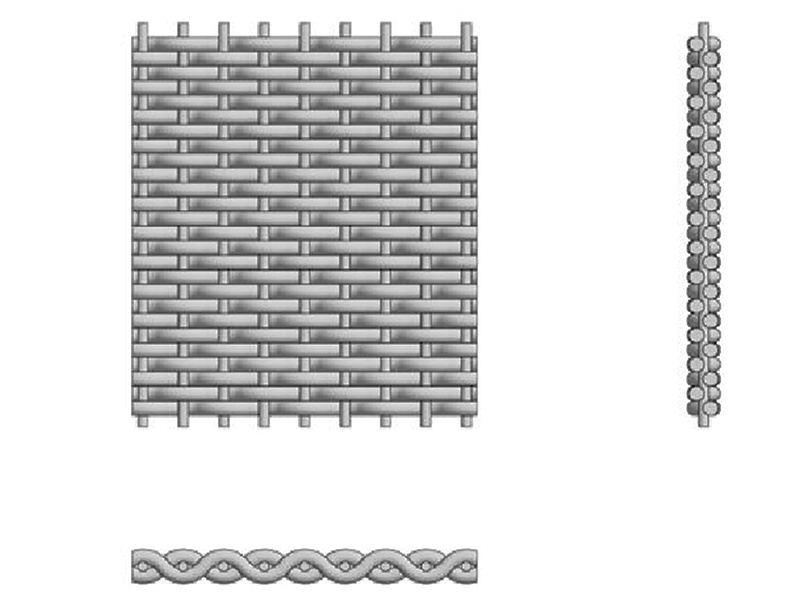

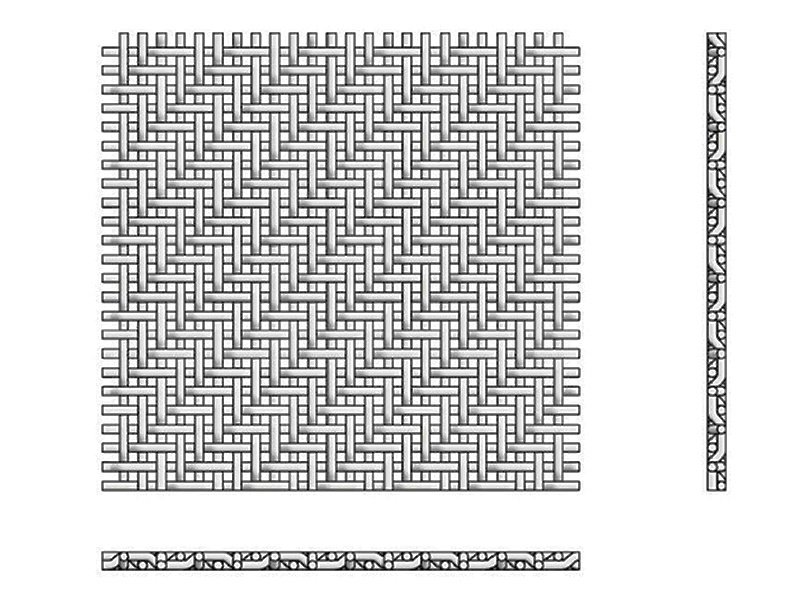

✔ Woven mesh is made by braiding single wires together to form a pattern, while welding mesh is made by welding the intersections of wires together. The opening of the woven wire mesh is smaller than that of the welding mesh. We offer woven and welded mesh in carbon mesh, galvanized mesh and stainless steel mesh. Aluminum wire mesh, nickel wire mesh, brass wire mesh only woven available.
