Twill Weave Wire Mesh

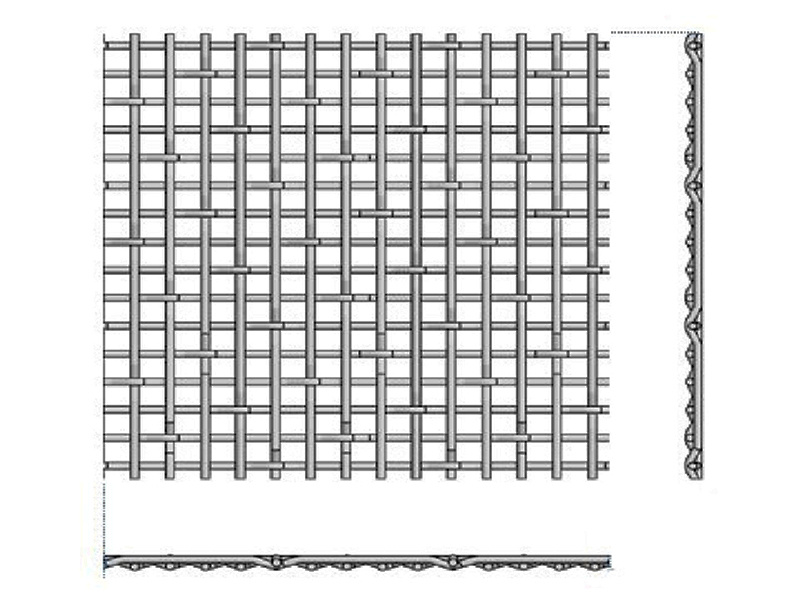

Twill Weave Wire Mesh is produced by each weft wire alternating across the two warp wire up and down, in a staggered arrangement on successive warp lines, resulting in a small, even mesh size that presents the appearance of parallel diagonal lines. Strong load capacity, fine filtration density, often used in filtration, screening and other precision applications.

Please refer to the information below, our mesh experts can help you determine the right mesh for your application.

Twill Weave Wire Mesh Specifications

Twill Weave Wire Mesh Features and Advantages

Fine filtration density

The aperture gap of twill weave wire mesh between the warp wire and weft wire are small, the structure is tight, the filtration performance is good, the filtration density is fine, and the small particles and impurities can be screened and filtered;

Strong tensile strength

Because of its high structural density and unique weaving method, the twill weave wire mesh has high tensile strength and stability;

Good wear resistance

Because of its compact structure and high strength, twill weave wire mesh usually has better wear resistance and long service life;

Widely used

Because of directivity and texture, good elasticity and strong load capacity, the twill weave wire mesh can be used in a variety of application scenarios.

Twill Weave Wire Mesh Available Material

Stainless Steel Wire Mesh: 304, 304L, 316, 316L, 310, 310S, 314, 321, etc.

Brass Wire Mesh: copper65%, zinc35%;

Epoxy Coated Wire Mesh: stainless steel, aluminum alloy, carbon steel;

Monel Wire Mesh: 400;

Nickel Wire Mesh: 200;

Low carbon steel wire mesh: C1008;

Different metal materials can be customized according to customer needs.

Twill Weave Wire Mesh Inventory

Anping Guangtong Hardware Wire Mesh Co., Ltd. is a twill weave wire mesh manufacturer who is commited to professional design, research and development, production, with more than 20 years of experience in wire mesh production and processing field. In metal woven wire mesh’s field has an unshakable leading position, with a wide range of metal woven wire mesh inventory, it can more than 90% of the metal woven wire mesh manufacturers, in a number of inventory warehouses, there are 5000 different types of metal woven wire mesh. There are 3000-4000 types available for tailoring and same-day delivery.

(If we don't have what you need, or if you need a reliable long-term source throughout your supply chain, we can customize it as per your twill weave wire mesh specifications.)

Twill Weave Wire Mesh Production Capacity

Anping Guangtong Hardware Wire Mesh Co., Ltd. covers an area of 40,000 square meters, with more than 400 weaving machines, an annual capacity of about 3600,000 square meters, has reached a strategic partnership with more than 60 countries in the world. We welcome your inquiries and send us sample requests.

Twill Weave Wire Mesh Industry Certificate

The company has obtained and fully implemented ISO9001 Quality Management System Certification, ISO45001 Occupational Health And Safety Management System Certification, ISO14001 Environmental Management System Certification, IATF16949 Automotive Industry Quality Management System Certification, AEO customs certification and other related certifications.

Twill Weave Wire Mesh Packaging

Inner paper tube & Waterproof paper & Plastic film & Plywood case & Pallet

Twill Weave Wire Mesh Applications

Marine industry, wastewater treatment, chemical industry, gas filtration, automotive industry, hydrogen/solar energy, petroleum, pharmaceutical manufacturing, etc.

FAQ

What materials can you provide for twill weave wire mesh?

✔ We offer stainless steel, brass, epoxy coating, monel, nickel, low carbon steel, etc. material of twill weave wire mesh. If you have any special needs for the material, please contact us.

What kinds of woven twill weave wire mesh do you offer?

✔ We offer weaves such as parallel twill and cross twill, etc.

Twill weave wire mesh is a type of woven wire cloth in which each weft wire passes alternately over and under two successive warp wires, and each warp wire follows the same pattern with the weft wires. This weaving method creates a distinct diagonal pattern on the mesh surface, providing enhanced strength, flexibility, and a tighter mesh structure compared to plain weave designs. Due to its construction, twill weave wire mesh can accommodate heavier wire diameters and finer mesh counts without compromising stability, making it suitable for precise filtration and high-pressure applications.

One of the key characteristics of twill weave wire mesh is its balance between strength and filtration accuracy. The interlocking pattern allows for more wires per inch, resulting in smaller openings and improved particle retention capabilities. At the same time, it maintains sufficient flexibility to withstand mechanical stress, vibration, and pressure fluctuations. This unique combination makes it a preferred choice for demanding environments such as aerospace, petrochemical, and pharmaceutical industries.

In industrial filtration systems, twill weave wire mesh is often used for separating solid particles from liquids or gases, ensuring consistent flow rates and extended filter life. Its high tensile strength and uniform pore distribution allow it to perform effectively even under extreme conditions, such as high temperatures or corrosive environments. The mesh is typically made from durable materials like stainless steel (304, 316, 316L), Monel, Inconel, Nichrome, or titanium, depending on the specific application requirements. Stainless steel twill weave wire mesh, for example, is particularly valued for its corrosion resistance and heat tolerance.

Beyond filtration, twill weave wire mesh also plays an important role in screening, sieving, and separation processes. It is widely used in industries such as mining, chemical processing, food production, and construction, where precise control over particle size and separation efficiency is essential. In laboratories, fine twill weave meshes are utilized for microfiltration and analytical testing due to their consistent pore size and reliable performance.

From a design and manufacturing perspective, twill weave wire mesh offers significant advantages. The twilled pattern allows for the use of thicker wire diameters relative to mesh count, providing a more robust and long-lasting mesh compared to other weaves. The diagonal alignment of the wires enhances the mesh’s ability to resist deformation and maintain shape under mechanical load. In addition, the surface texture created by the twill weave not only adds aesthetic appeal but also contributes to better flow distribution in filtration systems.

Another notable feature of twill weave wire mesh is its versatility in customization. It can be produced in various mesh counts, wire diameters, and materials to meet specific technical standards. Common configurations range from coarse meshes used in structural or screening applications to ultra-fine meshes used for precise filtration of gases or liquids. The mesh can also be supplied in rolls, cut-to-size sheets, or fabricated into cylindrical or conical filter elements according to the needs of the end user.

In terms of maintenance and longevity, twill weave wire mesh provides excellent wear resistance and minimal risk of clogging, thanks to its even spacing and smooth surface. When used in corrosive environments, selecting an appropriate alloy ensures a long operational lifespan with minimal degradation. Cleaning and reusability are additional benefits—many twill weave mesh filters can be cleaned by backwashing, ultrasonic cleaning, or chemical treatment, depending on the material and type of contaminants.

The applications of twill weave wire mesh are diverse and span across multiple sectors:

1. Filtration and separation – Used in liquid and gas filtration, oil refining, water treatment, and chemical processing.

2. Screening and sieving – Applied in mining, pharmaceuticals, food processing, and powder metallurgy for precise particle sizing.

3. Protective and reinforcement structures – Serves as shielding, reinforcement layers, or protective barriers in industrial and architectural settings.

4. Heat and corrosion-resistant components – Ideal for high-temperature furnaces, heat exchangers, and catalyst support structures.

5. Aerospace and defense – Used in systems requiring durability, lightweight protection, and resistance to thermal expansion or oxidation.

In architectural and design applications, twill weave wire mesh is also gaining popularity for its distinctive visual appeal. It is used for building facades, interior partitions, and decorative panels, offering a combination of strength, transparency, and modern aesthetics. The mesh’s reflective properties can enhance lighting and ventilation, contributing to sustainable and visually striking architectural designs.

To summarize, twill weave wire mesh is a highly adaptable and durable woven metal fabric known for its superior mechanical strength, fine filtration precision, and ability to withstand harsh industrial conditions. Its versatility in material selection, structural integrity, and range of applications make it an indispensable component across industries. Whether used for filtration, screening, or architectural enhancement, twill weave wire mesh continues to play a crucial role in advancing modern engineering and manufacturing processes.

Can you offer twill weave wire mesh in other sizes not listed on the website?

✔ Yes, we can provide custom machining services and can provide other specifications of twill weave wire mesh according to your needs.

Can your company provide material test reports for special materials?

✔ Yes, we can provide material reports according to your needs.

What surface treatment can your company provide for Dutch weave wire mesh?

✔ Normally, the surface treatment methods we can provide include cleaning, coating, and so on.‌
